Using the splitting interface

Before a volume's sheet can be georeferenced, it must be visually evaluated to determine whether it contains more than one distinct region within it. For example, an inset on the page may show a different part of town, or a page may simply have two (or more) completely separate maps. In these cases, each of these parts must be split into separate documents so each one can be georeferenced individually.

Background

Sometimes an old map document will cover discontiguous areas, especially when the mapmakers were trying to fit a lot of content into a single page. In these cases, each separate area in the original document must be split into its own new document, so that each area can be georeferenced on its own. Typically, you'll find strong black lines delineating different parts of the map. The document must be split along those lines.

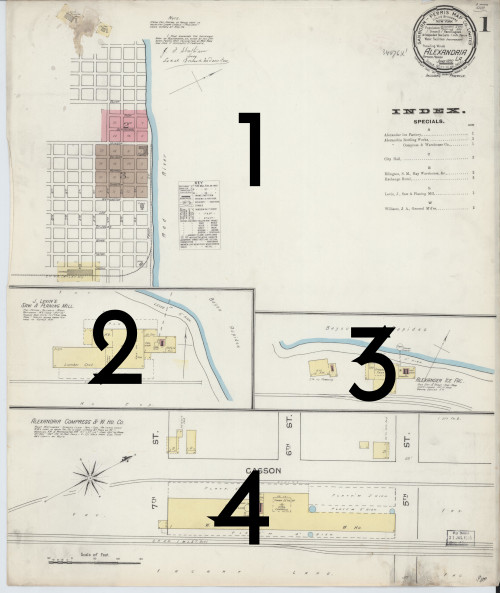

This map must be split into four new documents.
This map must be split into four new documents.

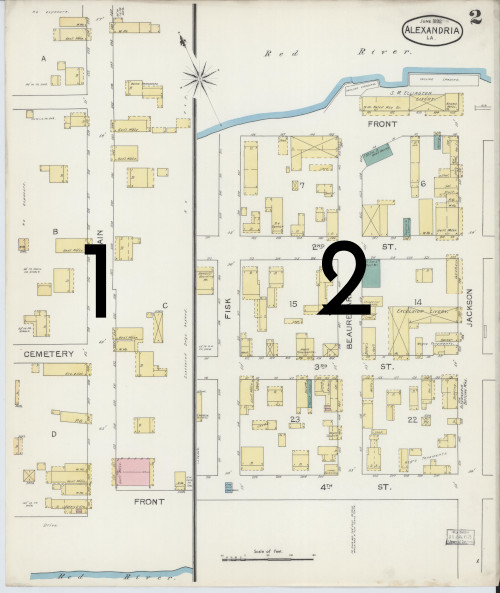

This map must be split into two new documents.
This map must be split into two new documents.
This map shows only one part of town, so it should not be split.
This map shows only one part of town, so it should not be split.

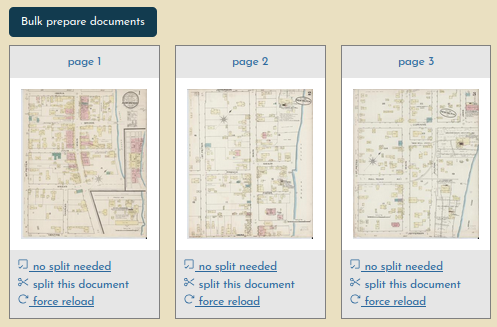

Using the Interface

Here's a quick example of using the splitting interface to cut a sheet into three separate documents. It is kind of a sloppy example, please be a bit more exact that this if you can!

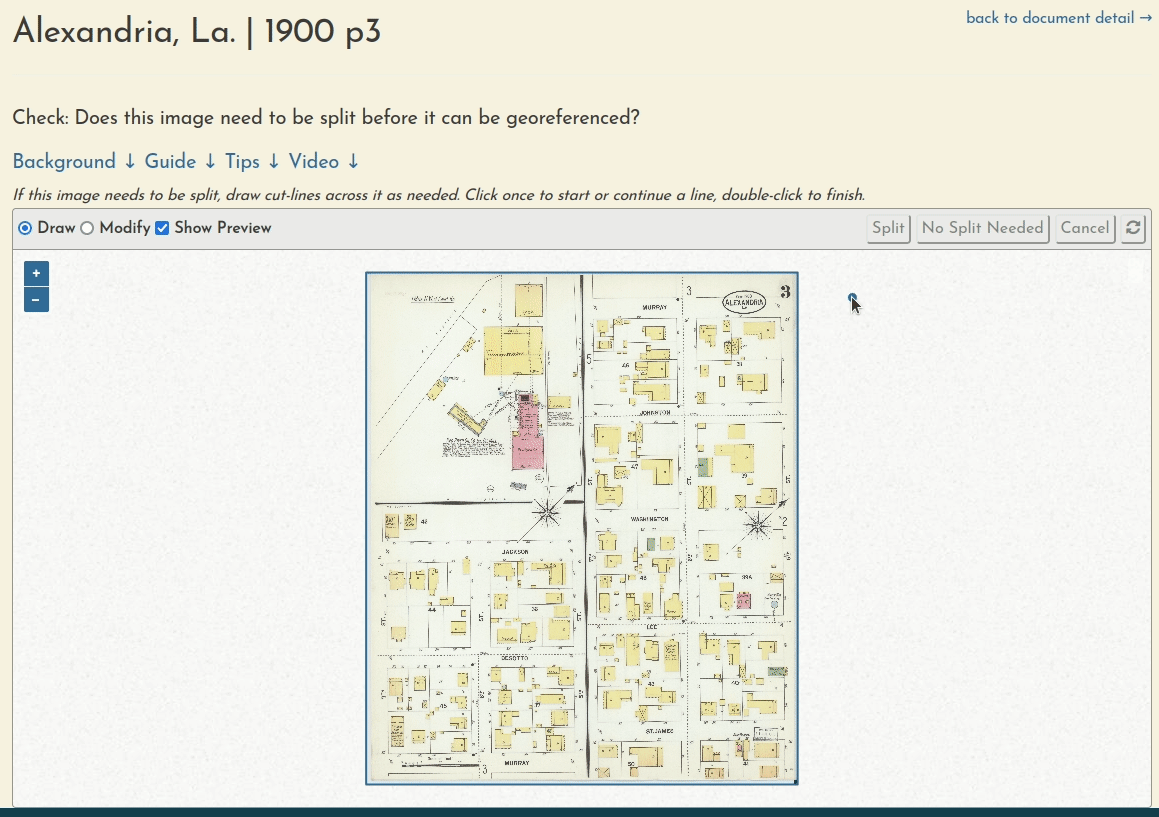

The splitting interface, ready to split this document into three new documents.

If this document does not to be split:

  • Click No Split Needed.
  • You will be redirected to the document detail page, from which you can continue the georeferencing process.
  • If you chose this by mistake, you can undo the designation in the document detail page.

If this document does need to be split

  • Use the interface to create as many cut-lines as are needed to fully split this document.
  • Once you have one or more valid cut-lines, a preview will appear showing how the image will be split.
  • Click Split when you are ready.
  • You will be redirected to the document detail page, while the split process runs in the background.
  • If you split the document incorrectly, you can undo the process in the document detail page.

Fixing an incorrect determination:

  • In the document detail page, you can undo this operation as long as no georeferencing has been performed.
  • Look for the undo button under the Preparation heading.
  • If the button is disabled but you believe the split process was performed incorrectly, please contact an admin.

Creating cut-lines:

  • In Draw mode, click once to start or continue a line, and double-click to finish it.
  • Press Esc to cancel an in-progress drawing.
  • Switch to Modify mode to change a cut-line.
  • Click to erase all lines and start over.

Understanding cut-lines:

  • Once you have a valid cut-line, a preview will appear showing you how the document will be split.
  • Only cut-lines that fully cross a segment of the document will be used—all others will safely be ignored.
  • Cut-lines can intersect or extend from each other to handle complex shapes.
